*1. Recommended: For normal operation and optimal tracking performance. Maximum: Upper operational limit; the safe upper operating load the mount can support and slew
*2. Wireless functionality may vary by country and region.
WARPDRIVE WD-20E Mount
Precision, measured at the axis.

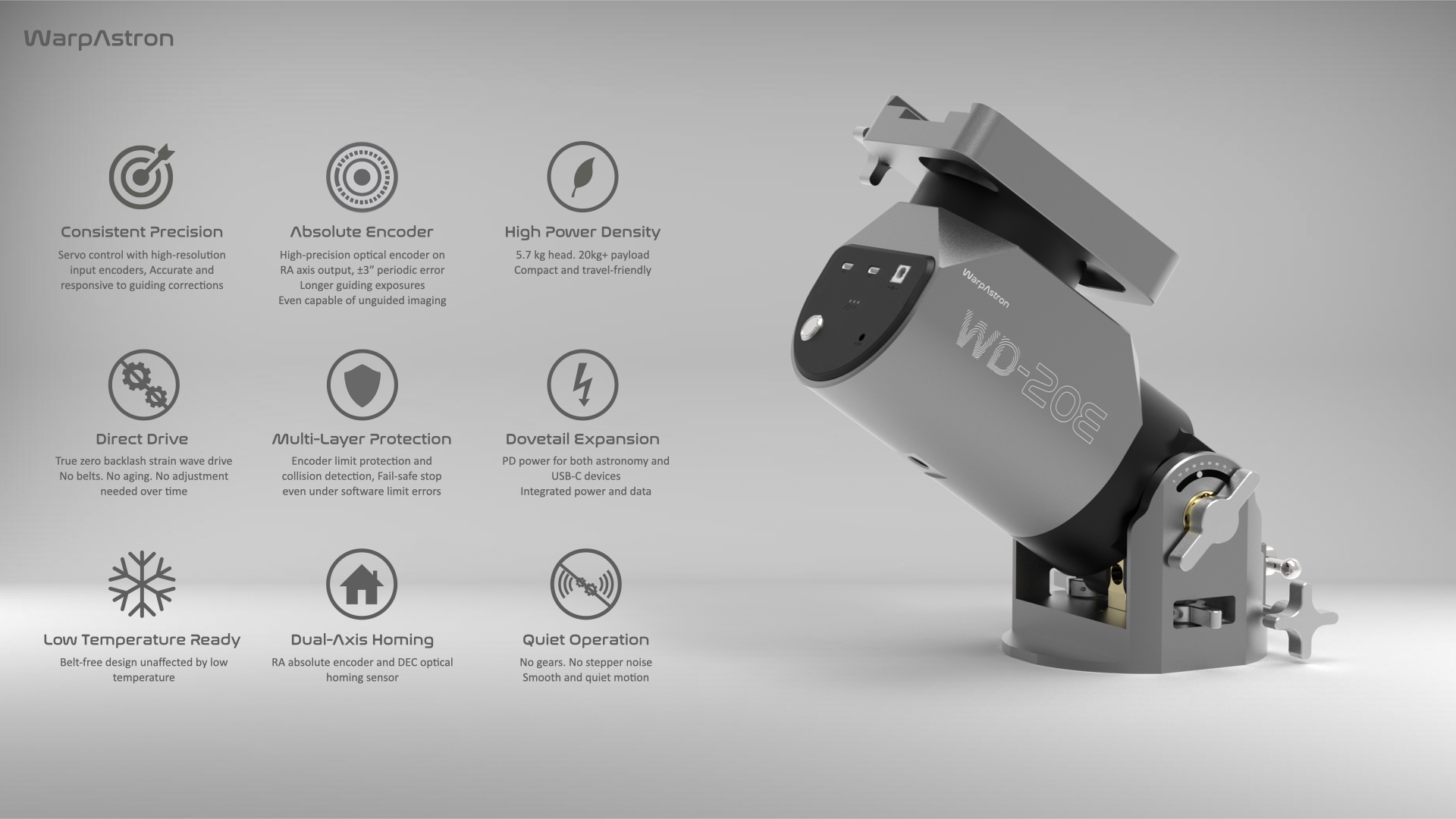

The WD-20E is a new member of the WARPDRIVE EC Series, combining our proven belt-free Servo Direct Drive architecture with high-resolution absolute feedback at the final RA output axis.
The servo motor drives the strain-wave reducer directly, while the output encoder measures the movement of the axis that carries the telescope. The result is a complete RA drive built around direct response, true position feedback and consistent performance.
Servo Direct Drive. True Axis Feedback. Individually Verified.
More control, right in your hand.

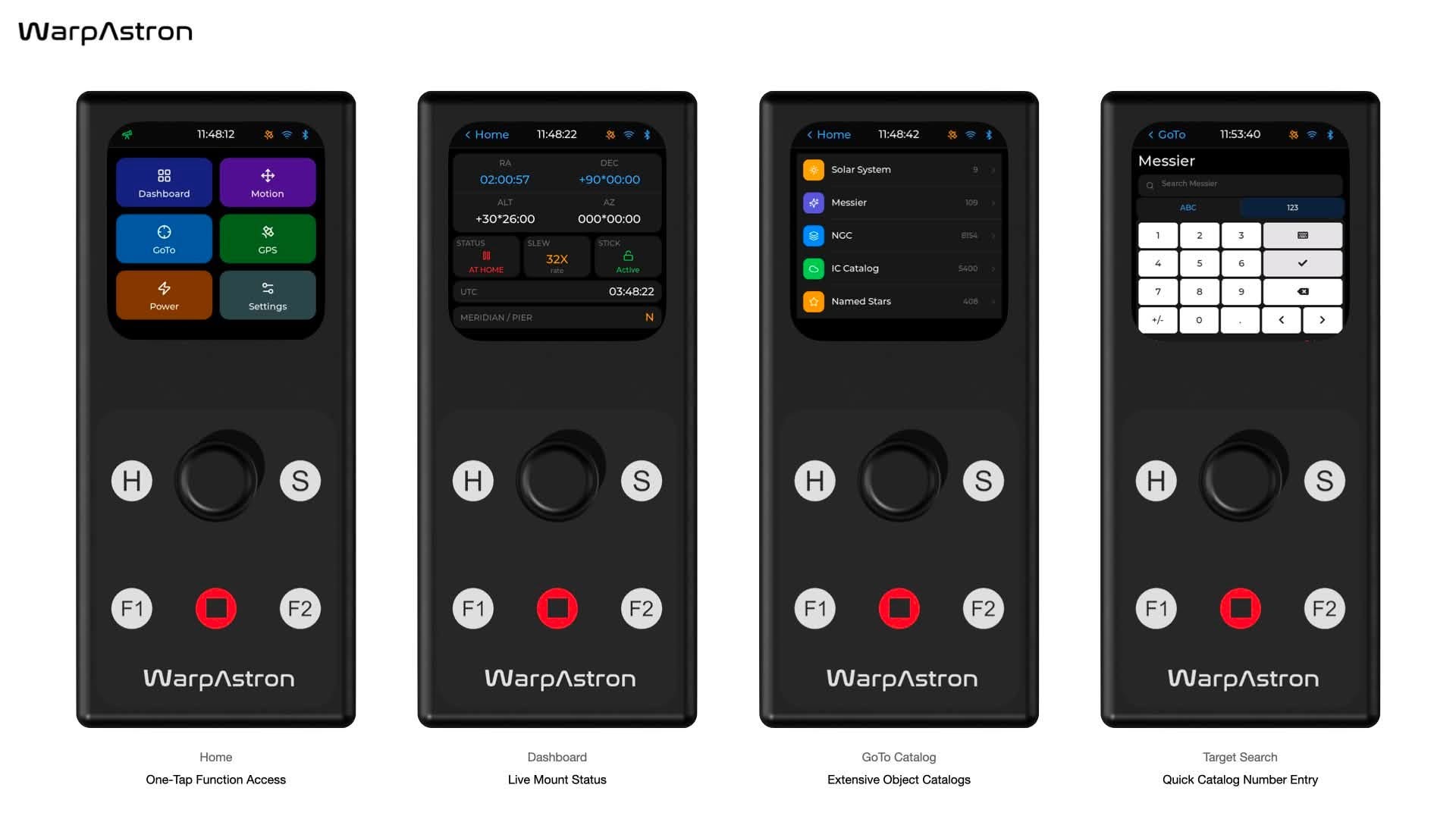

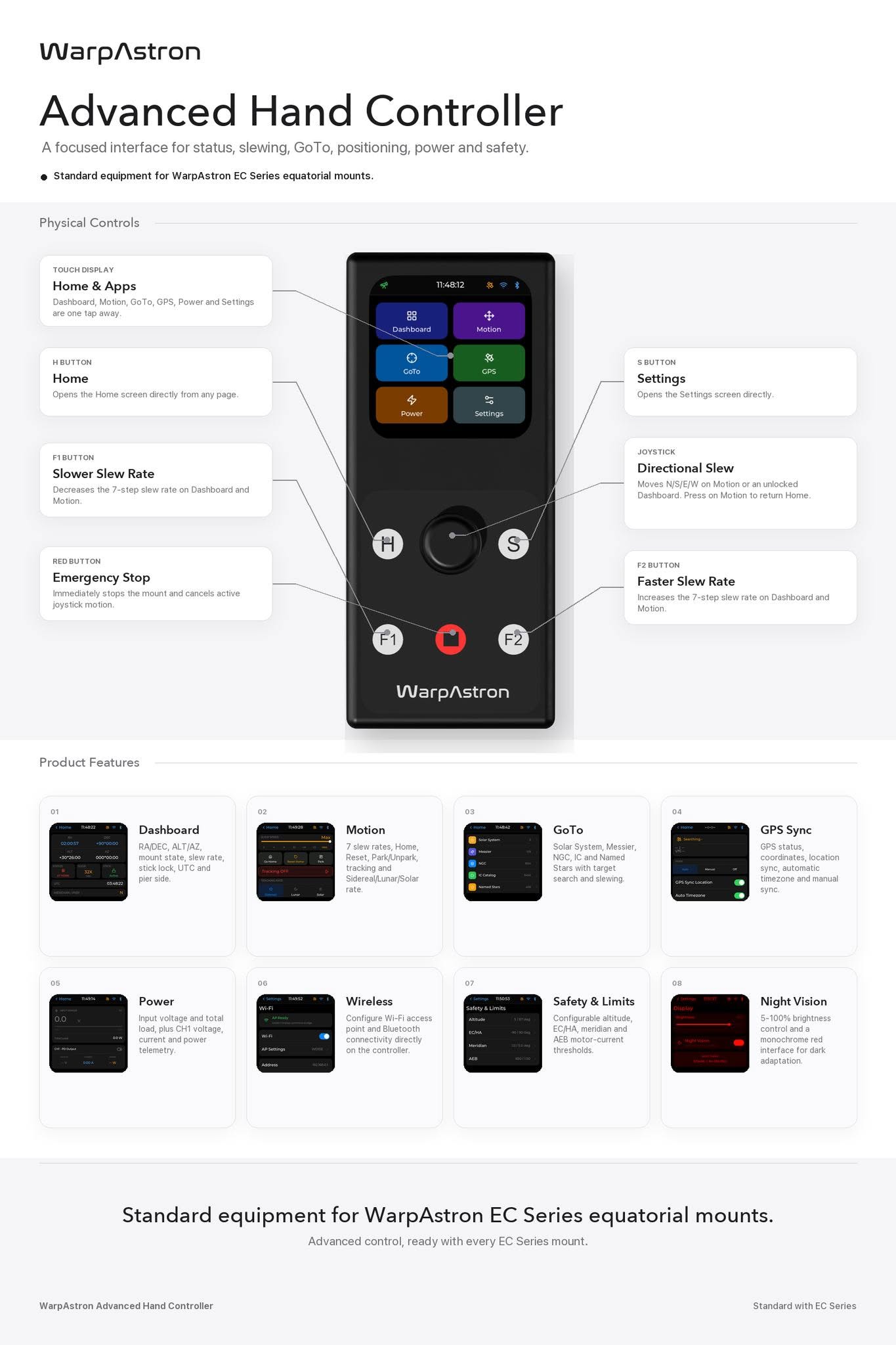

The new Advanced Hand Controller combines a 2-inch OLED touch display, precise Hall-effect joystick, built-in GPS and wireless connectivity in one compact interface. Essential mount controls are now faster, clearer and always within reach.
MSRP: $3,499
Summer Pre-order: $3,399
(Limited-time promotion. Local tariffs and taxes may apply

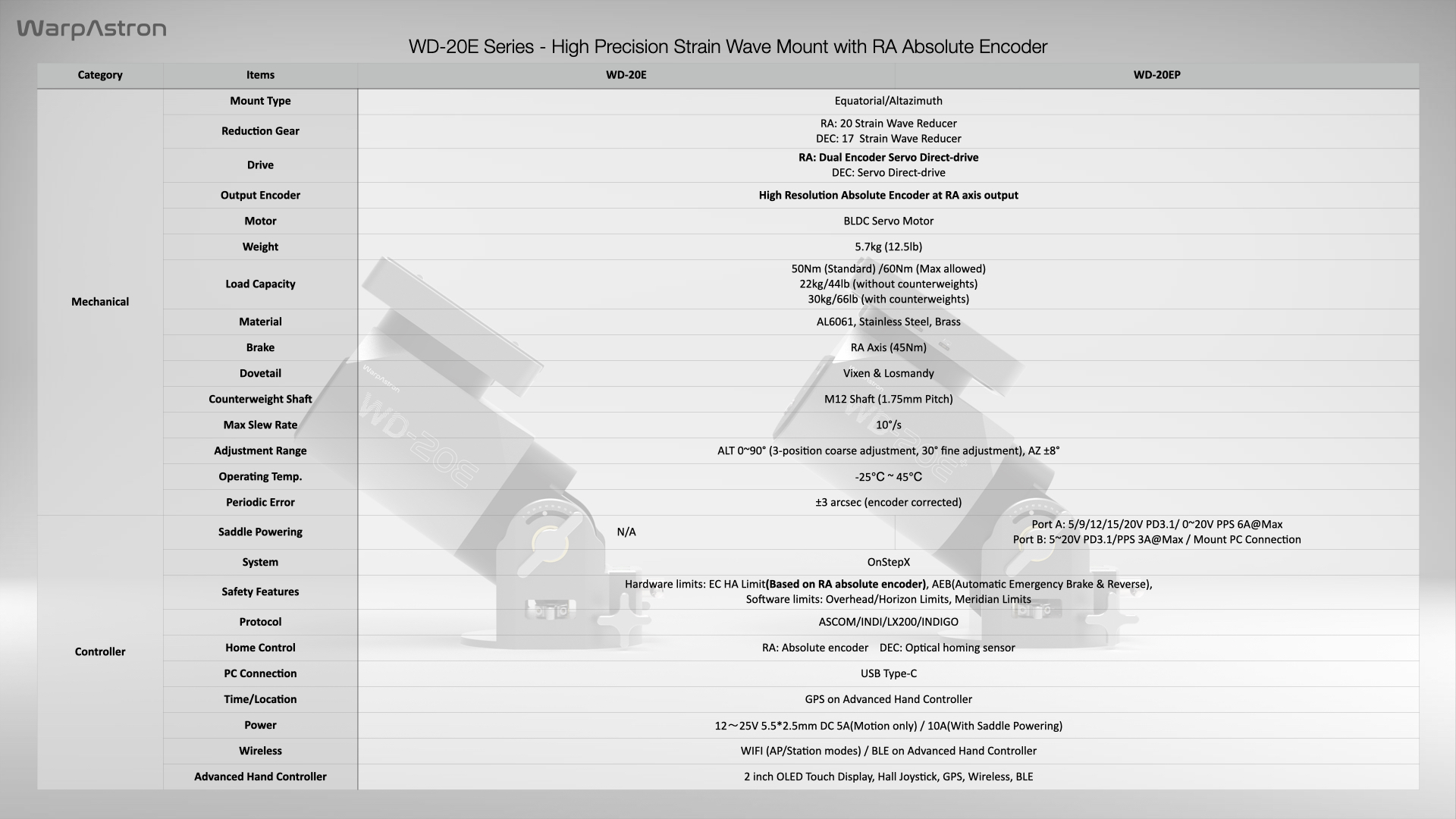

Mount Type
Equatorial/Altazimuth
Reduction Gear
RA: 20 Strain Wave Reducer, DEC: 17 Strain Wave Reducer
Drive
RA: RA: Dual Encoder Servo Direct-drive, DEC: Servo Direct-drive
Motor
BLDC Servo Motor
Weight
5.7kg (12.5lb)

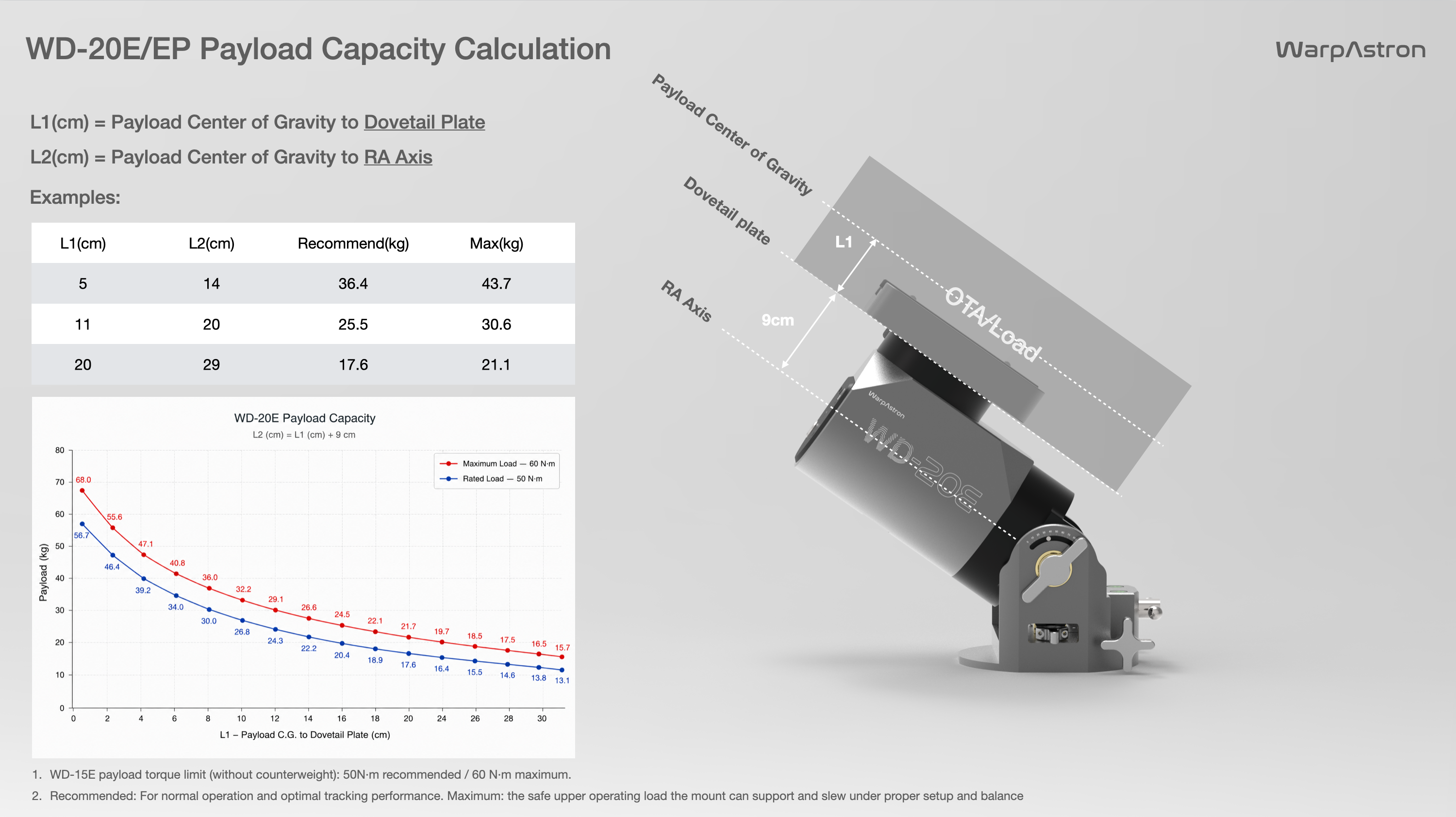

Load Capacity*1
50Nm (Recommended) / 60Nm (Max allowed)
; 22kg/44lb (without counterweights)
30kg/66lb (with counterweights)
Material
AL6061, Stainless Steel, Brass, ABS
Brake
RA Axis (45Nm)
Saddle
Vixen & Losmandy
Counterweight Shaft
M12 Shaft (1.75mm Pitch)
Slew Rate
5°/s (Standard 1/2Max), 10°/s (Max)
Adjustment Range
ALT 0~90° (3-position coarse adjustment, 30° fine adjustment), AZ ±8°
Operating Temp.
-25℃ ~ 45℃
Periodic Error
±3 arcsec (encoder corrected)
Communication Protocol
ASCOM/INDI/LX200/INDIGO
Home Control
RA: absolute encoder DEC: optical homing sensor
Time/Location
GPS on Advanced Hand Controller
Power
12～25V 5.5*2.5mm DC 5A
Wireless*2
WIFI (AP/Station modes) / BLE on Advanced Hand Controller
Advanced Hand Controller
2 inch OLED Touch Display, Hall Joystick, GPS, Wireless, BLE
- WD-20E Mount Head * 1
- Advanced Hand Controller(2026 version, Color OLED Touch Display) * 1
- USB Type-C to A Data Cable (PC connection) * 1
- USB Type-C to C 1m Cable * 1 (Hand controller connection)
- PD Type-C to DC 5.5*2.5mm 12V 5A 1m cable * 1
- Tracking Accuracy Report
- Aluminum Case with EVA Foam
- 3mm Hex wrench
