WARPDRIVE WD-20 Mount

Smooth Polar Adjustment

Mount Type
Equatorial/Altazimuth
Reduction Gear
RA: 20 Strain Wave Reducer, DEC: 17 Strain Wave Reducer
Drive
Direct-drive motor with SWR
Motor
BLDC Servo Motor

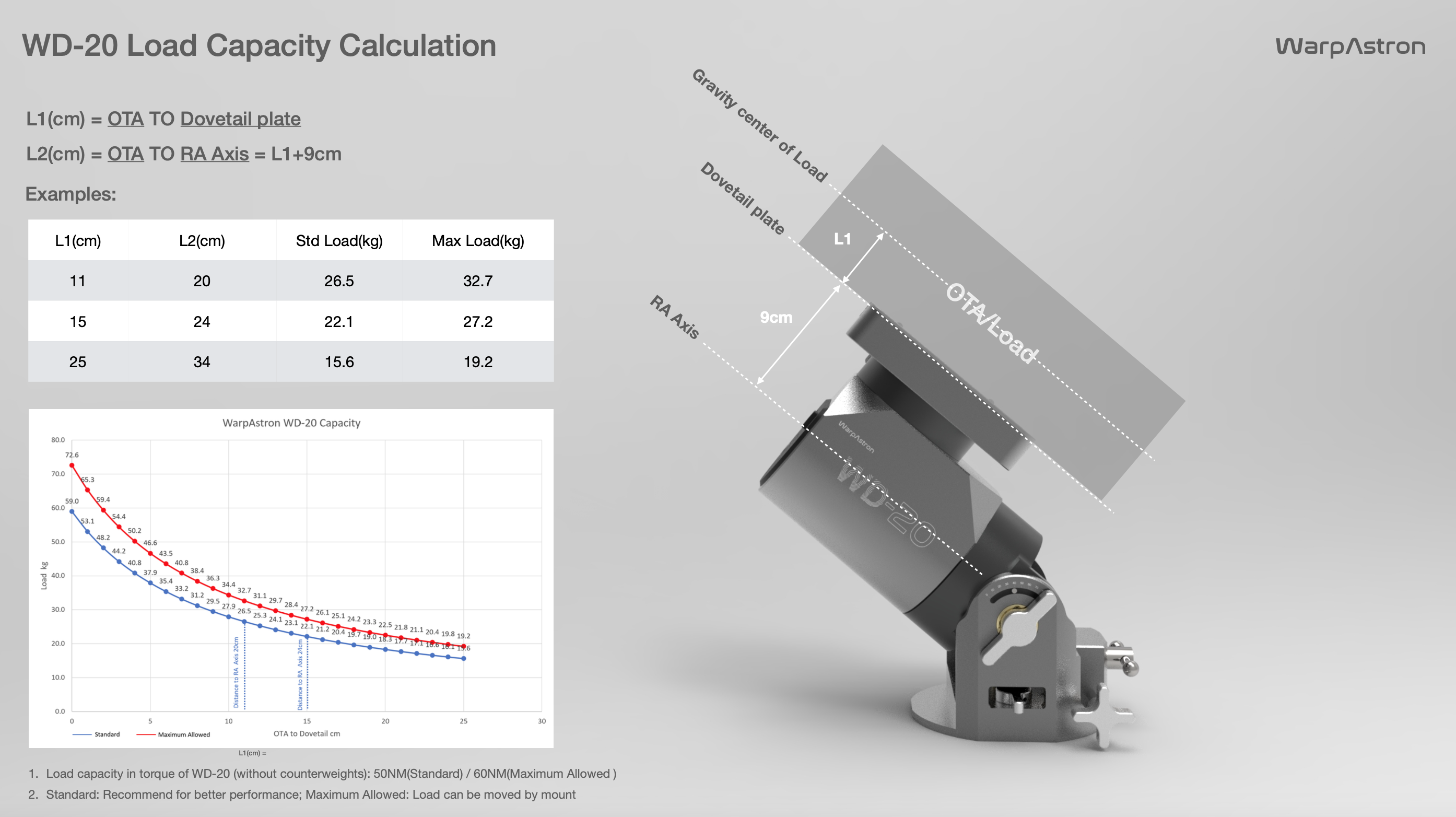

Load Capacity*1
50Nm (Standard) /60Nm (Max allowed) 22kg/44lb (without counterweights) 30kg/66lb (with counterweights)
Material
AL6061, Stainless Steel, Brass, ABS
Brake
RA Axis
Saddle
Vixen & Losmandy
Counterweight Shaft
M12 Shaft (1.75mm Pitch)
Slew Rate
5°/s (Standard 1/2Max), 10°/s (Max)
Adjustment Range
ALT 0~90°, AZ +/-8°
Operating Temp.
-25℃ ~ 50℃
Communication Protocol
ASCOM/INDI/LX200/INDIGO
Home Control
2-axis Home Sensors
Time/Location
Built-in GPS
Power
12V 5A 5.5*2.1/2.5mm DC
Wireless*2
WIFI 802.11g/Bluetooth

*1. Standard: Recommend for better performance; Max Allowed: Load can be moved by mount; User should also consider the tripod stability and center of gravity to use counterweights properly.

*2. Wireless functionality may vary by country and region.

Firmwares

Mount Firmware 20.21W(New!)
Mother Board Firmware(WIFI/BT)

Oct 2024

Video Guide Download
Mount Firmware 20.12W
Mother Board Firmware(WIFI)

Feb 2024

Instruction Download
