*1. Standard: Recommend for better performance; Max Allowed: Load can be moved by mount; User should also consider the tripod stability and center of gravity to use counterweights properly.
*2. Wireless functionality may vary by country and region.

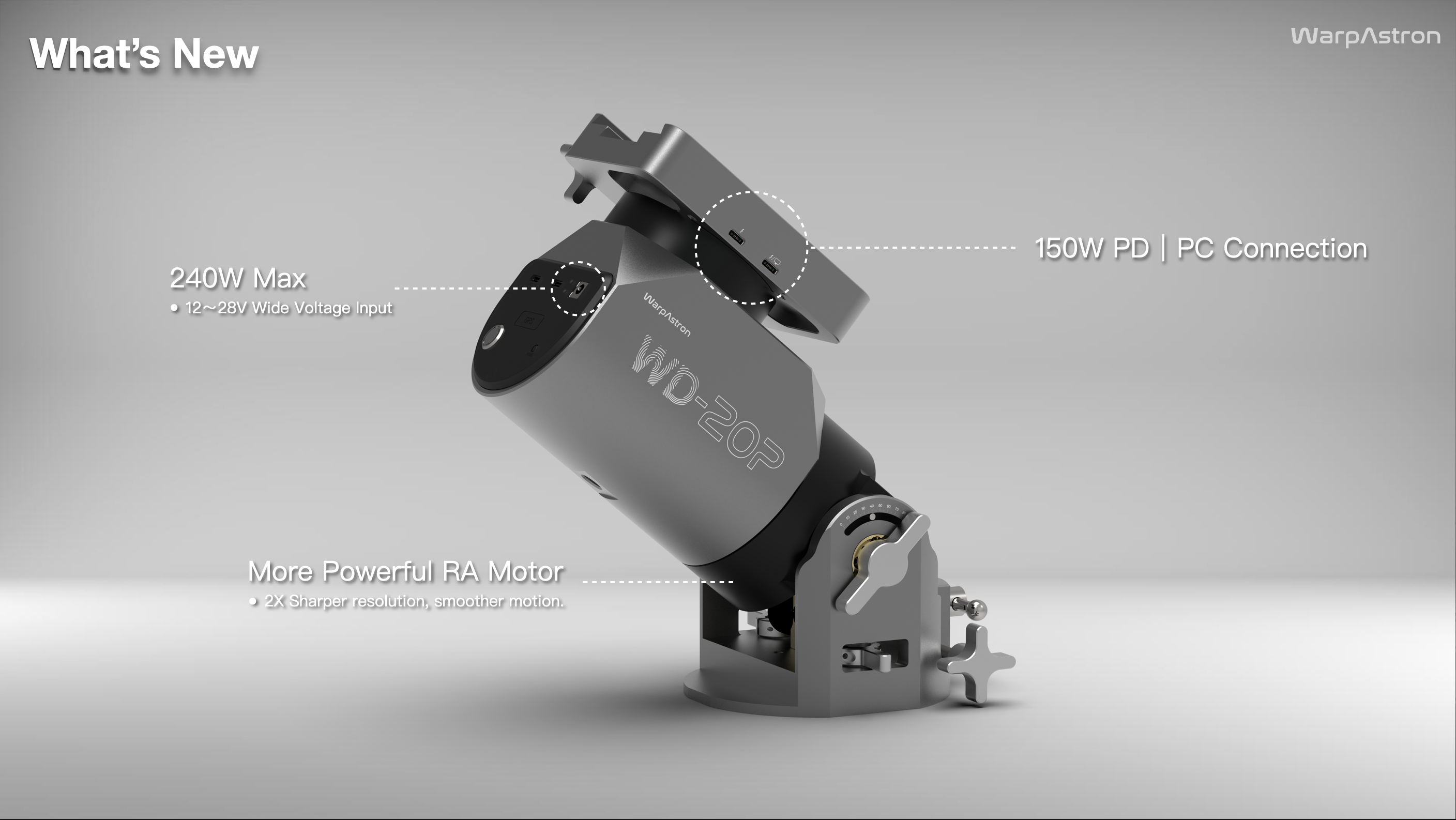

WARPDRIVE WD-20P Mount
“P” for Power Delivered!

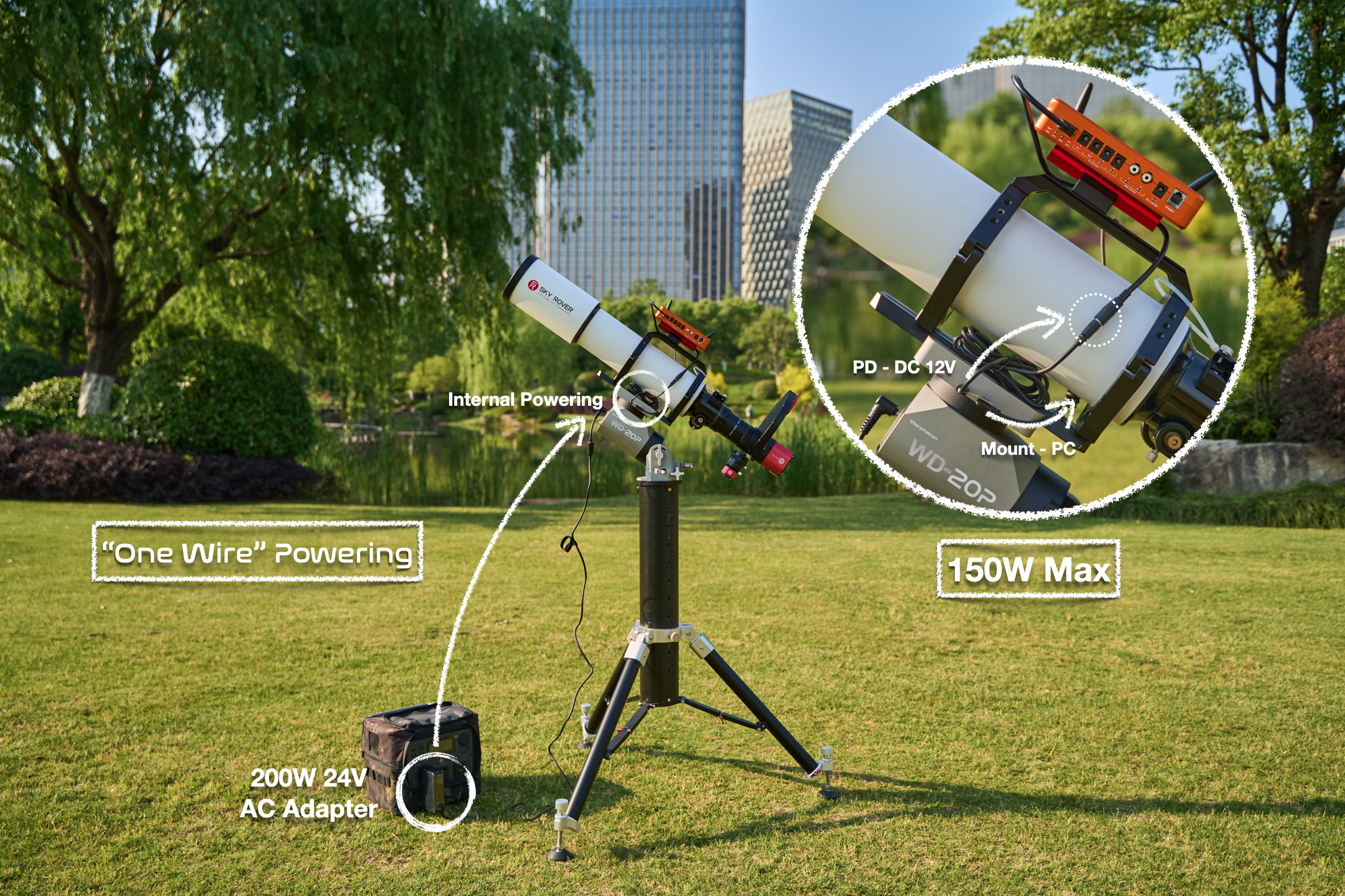

The all-new WD-20P retains our trusted Servo Direct Drive technology and introduces a redesigned internal structure that delivers up to 150W of power and data through the saddle — eliminating cable clutter and enabling seamless integration.

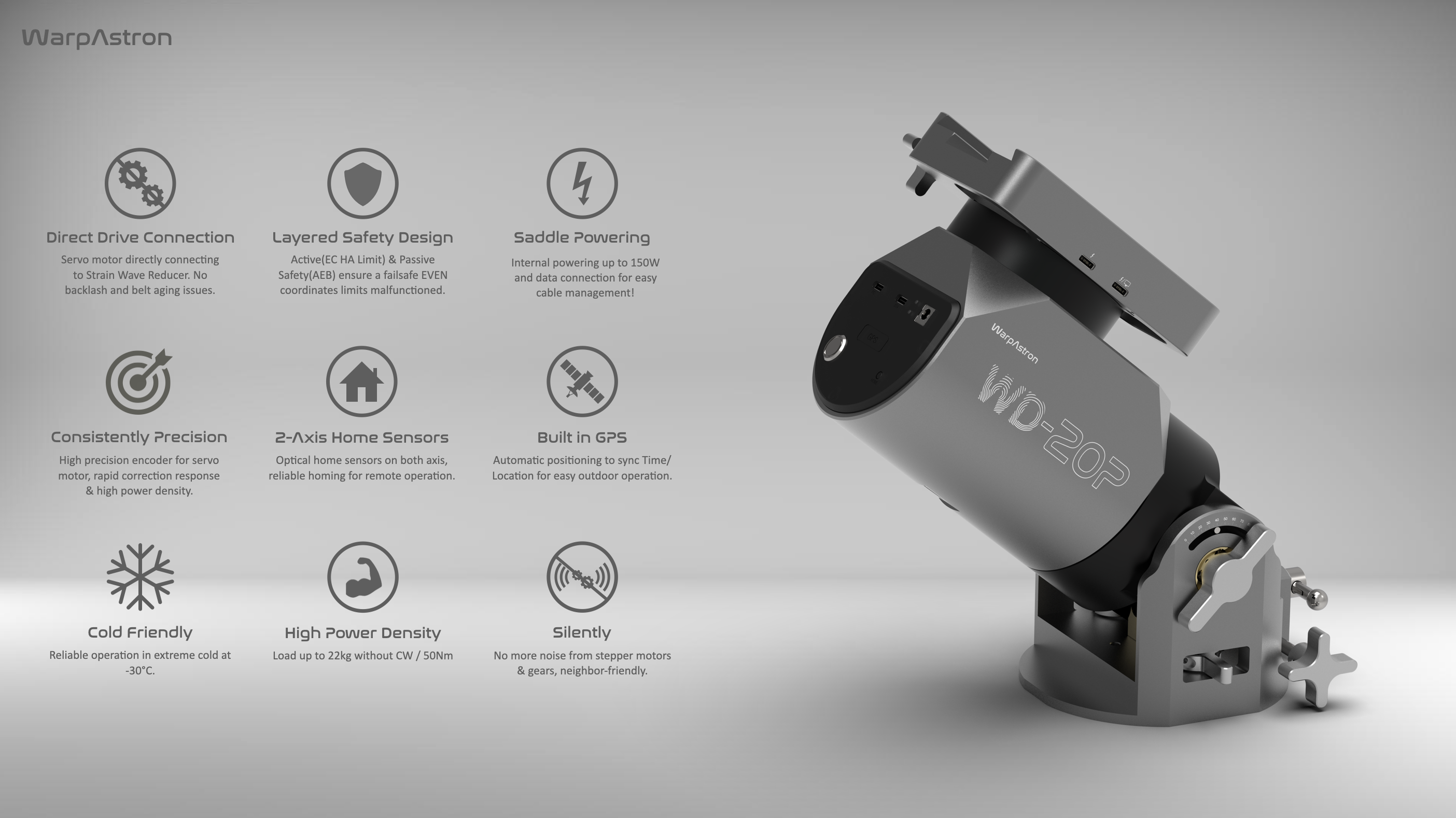

WD-20P is built with multi-layer active and passive safety features.
From encoder-based limit protection and automatic emergency braking, to a newly added gyroscopic sensor, every mechanism is designed to detect failures and act if damage happens. Even when the coordinate system fails, the mount responds swiftly to protect your gear
Flexible power. Play it your way.

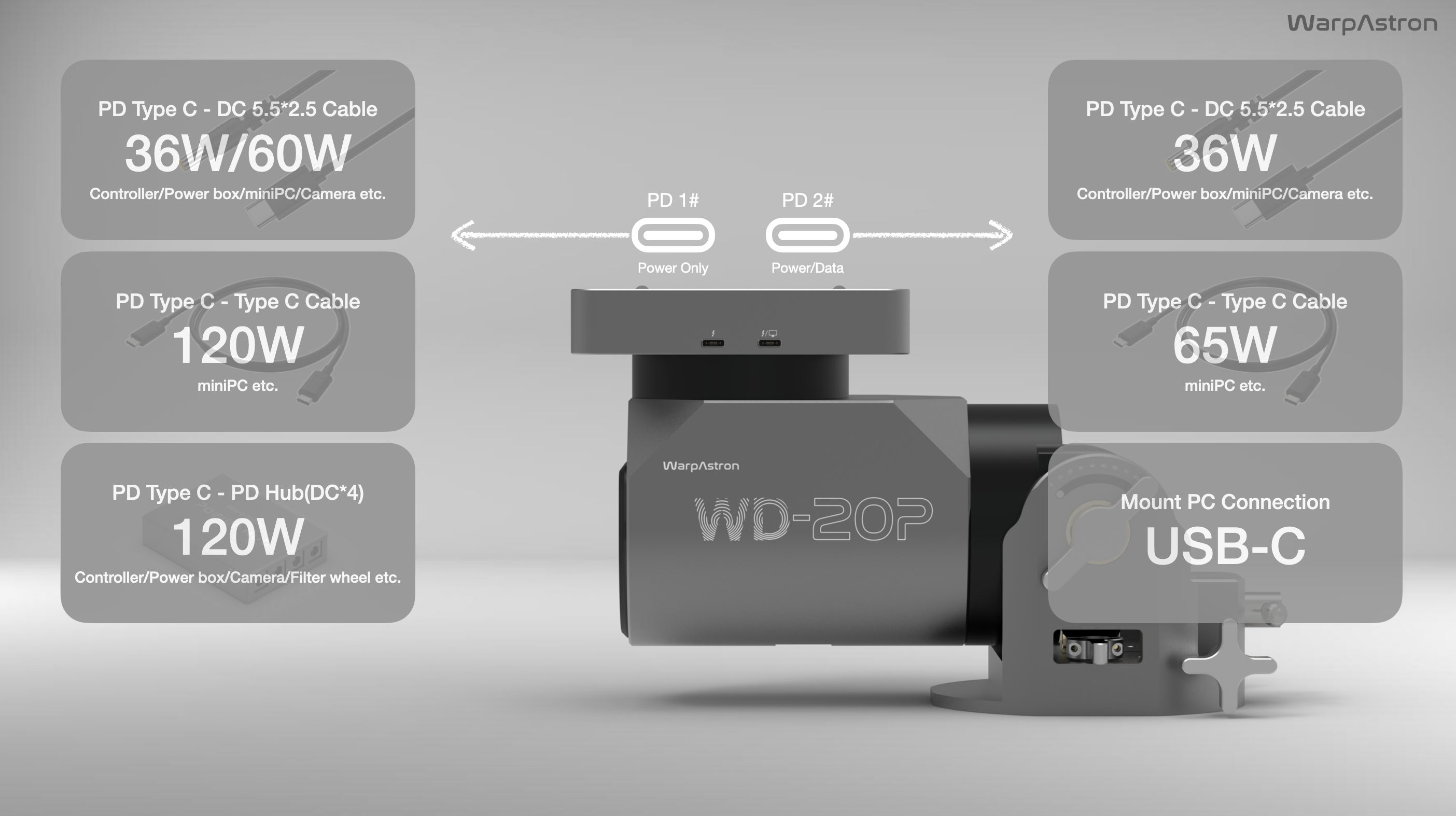

With two ports on saddle supporting for USB-PD power delivery, the WD-20P offers smart, adjustable voltage output up to 150W— ready to power high-performance mini PCs and a wide range of devices.

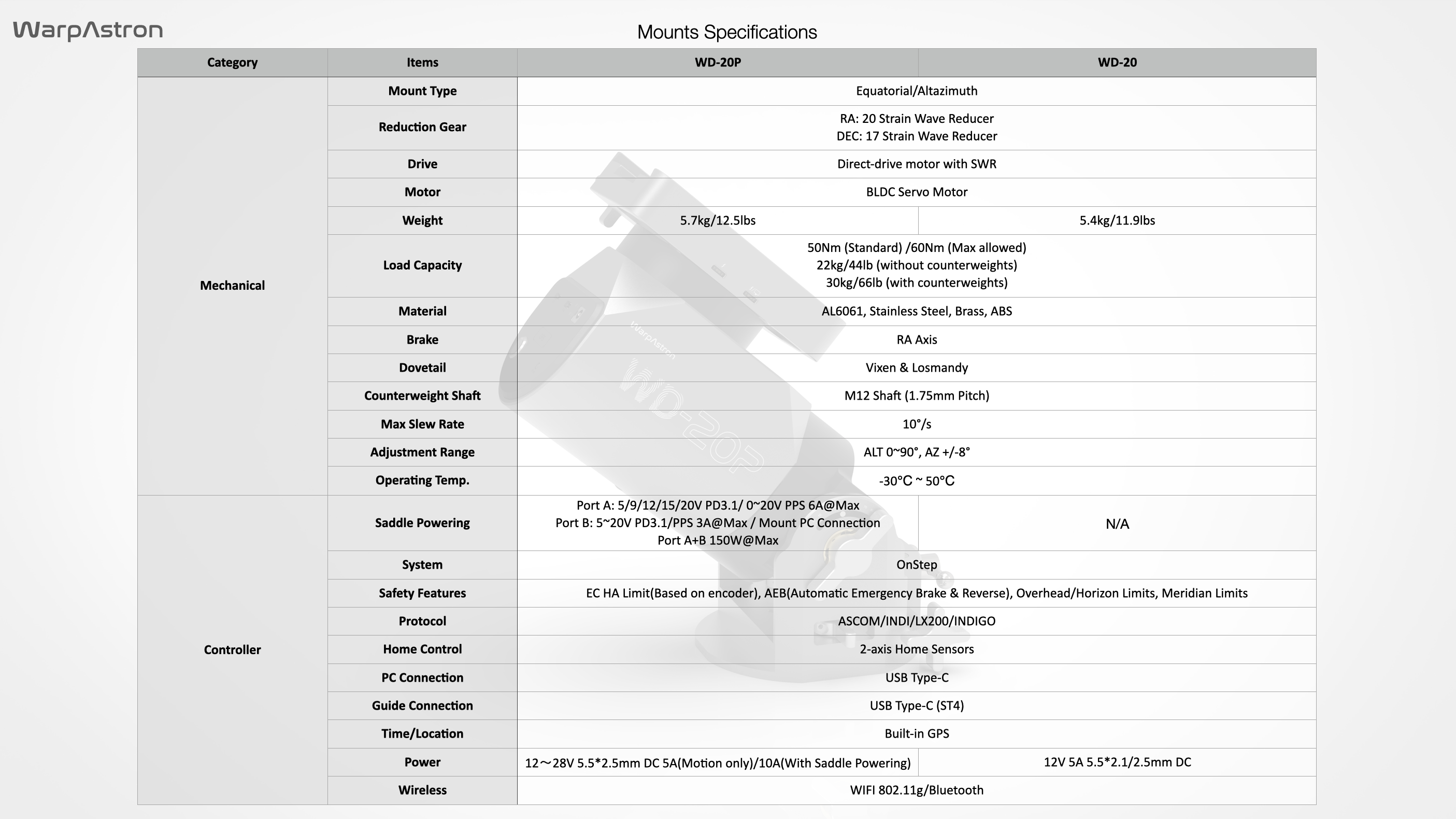

Mount Type
Equatorial/Altazimuth
Reduction Gear
RA: 20 Strain Wave Reducer, DEC: 17 Strain Wave Reducer
Drive
Direct-drive motor with SWR
Motor
BLDC Servo Motor
Weight
5.7kg/12.5lbs
Load Capacity*1
50Nm (Standard) /60Nm (Max allowed) 22kg/44lb (without counterweights) 30kg/66lb (with counterweights)
Material
AL6061, Stainless Steel, Brass, ABS
Brake
RA Axis
Saddle
Vixen & Losmandy
Saddle Port A
PD3.1 5/9/12/15@3A 20V@5A / PPS 0~20V@6A
Saddle Port B
PD3.1 5/9/12/15/20@3A / PPS 0~20V@3A / Mount PC Connection
Counterweight Shaft
M12 Shaft (1.75mm Pitch)
Slew Rate
5°/s (Standard 1/2Max), 10°/s (Max)
Adjustment Range
ALT 0~90°, AZ +/-8°
Operating Temp.
-30℃ ~ 50℃
Communication Protocol
ASCOM/INDI/LX200/INDIGO
Home Control
2-axis Home Sensors
Time/Location
Built-in GPS
Power
12～28V 10A 5.5*2.5mm DC
Wireless*2
WIFI 802.11g/Bluetooth
- WD-20P Mount Head * 1
- Hand Controller * 1
- DC to DC 5.5*2.5mm 1.5m cable * 1
- USB Type-C to A Data Cable (for PC connection) * 1
- USB Type-C to C 1m Cable * 1 (for hand controller connection or 100W PD)
- PD Type-C to DC 5.5*2.5mm 12V 3A 1.5m cable * 1
- PD Type-C to DC 5.5*2.5mm 12V 5A 1m cable * 1
- 200W 24V AC Adapter
- Transport case
- 4mm Hex wrench
- Quick Guide Instruction
