- PD Hub * 1
- USB Type-C 240W 6A PD Cable * 1
- Mini Dovetail * 1

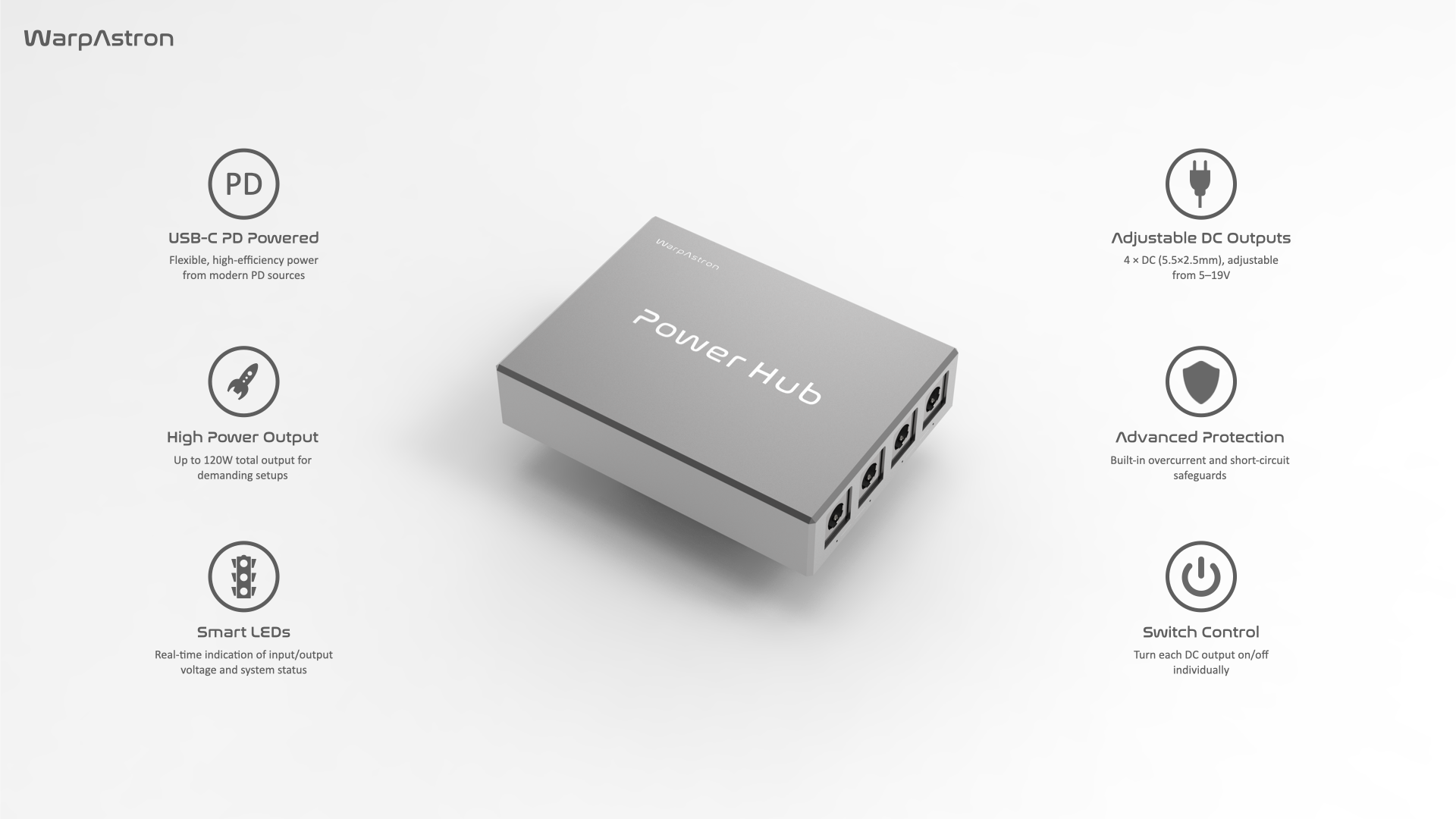

PD Hub Power Box

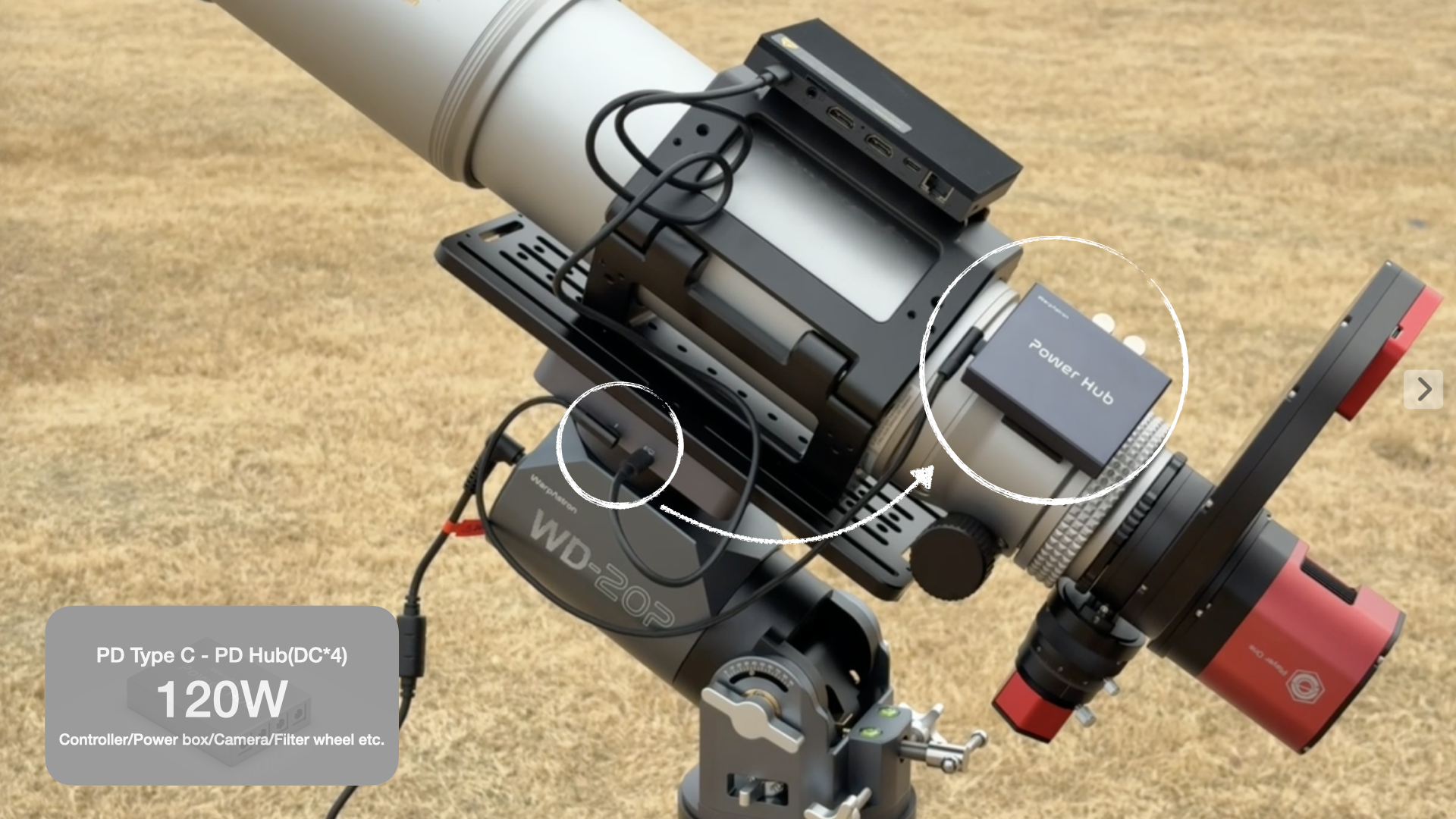

The all-new PD Hub is designed to bring clean, flexible, and efficient power to your astrophotography setup. Powered by modern USB-C PD technology, it delivers up to 120W of total output — providing stable and configurable power for cameras, mounts, and accessories through a compact, integrated solution.
With four independently controlled DC outputs and adjustable voltage from 5V to 19V, the PD Hub adapts seamlessly to a wide range of devices. By consolidating power distribution into a single unit, it helps reduce cable clutter and simplifies your entire rig for a cleaner and more reliable setup.

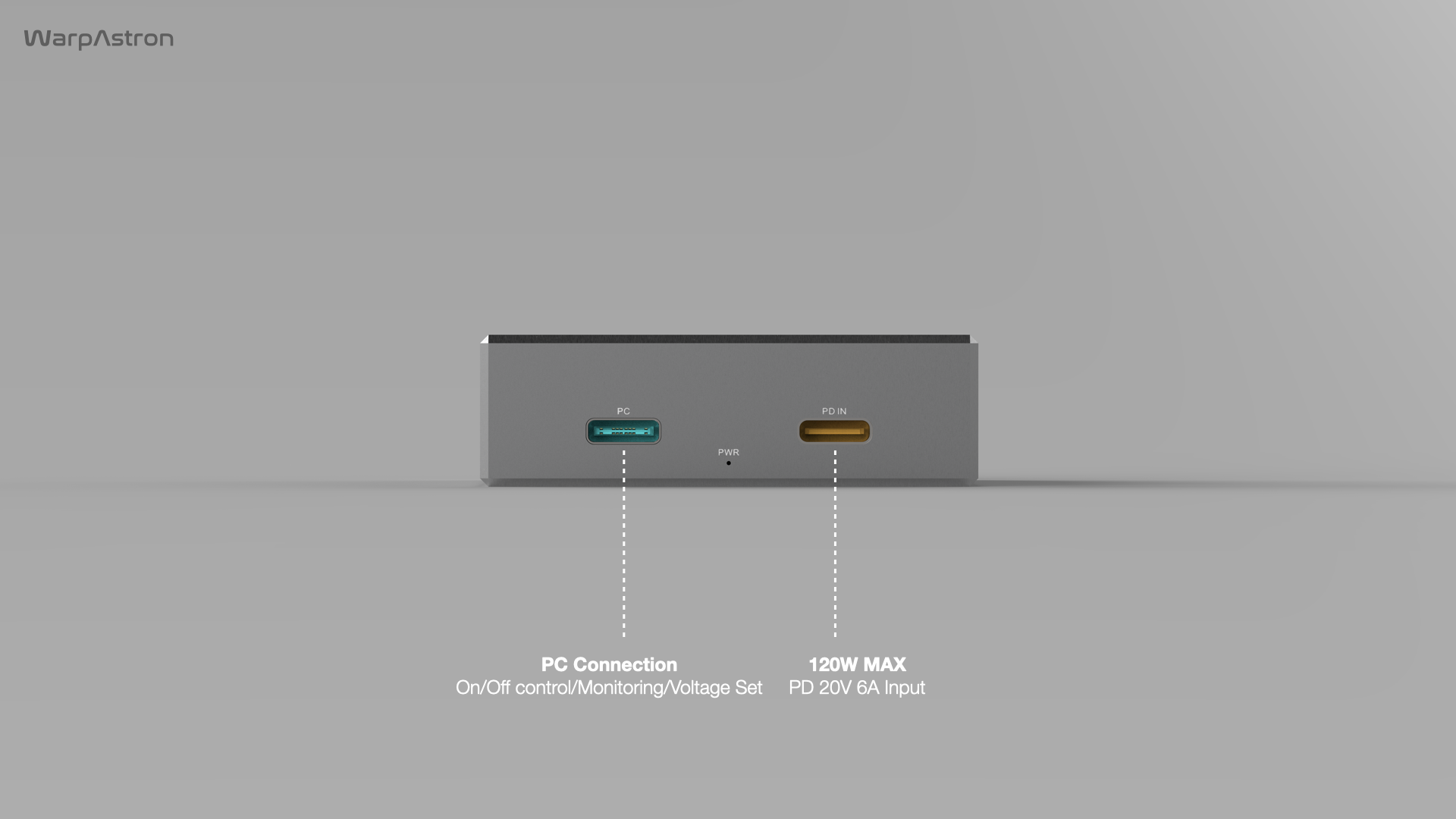

Input Power
USB-C Power Delivery (PD) 20V input, up to 6A
Output Voltage
Adjustable from 5V to 19V (12V Default) Dual-channel
Output Current
5A / channel
DC Outputs
4 × DC 5.5×2.5mm ports, on/off control for each port, Maximum 5A per port
Operating Temperature
-20°C to +40°C
Dimensions
79 × 59 × 18 mm
Material
AL6061
Weight
150 g
Mounting
Mini Dovetail
